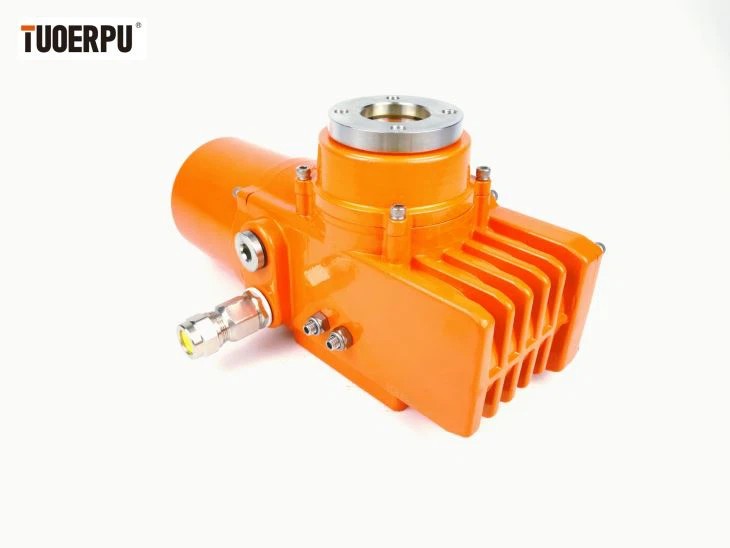

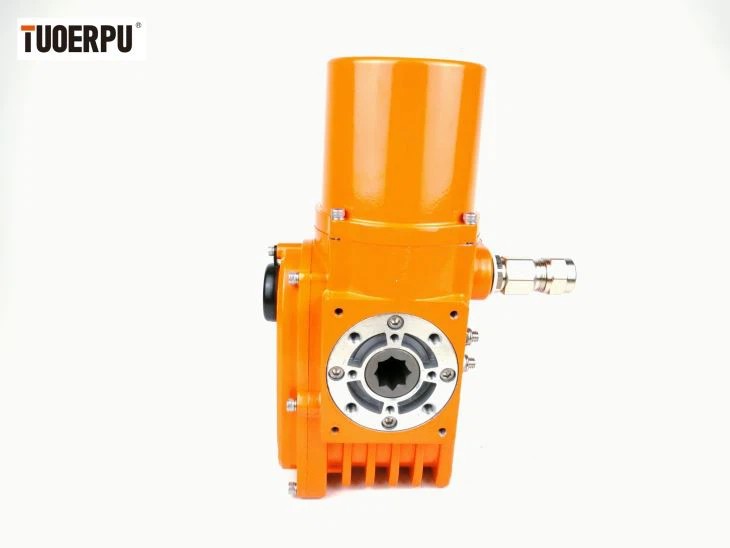

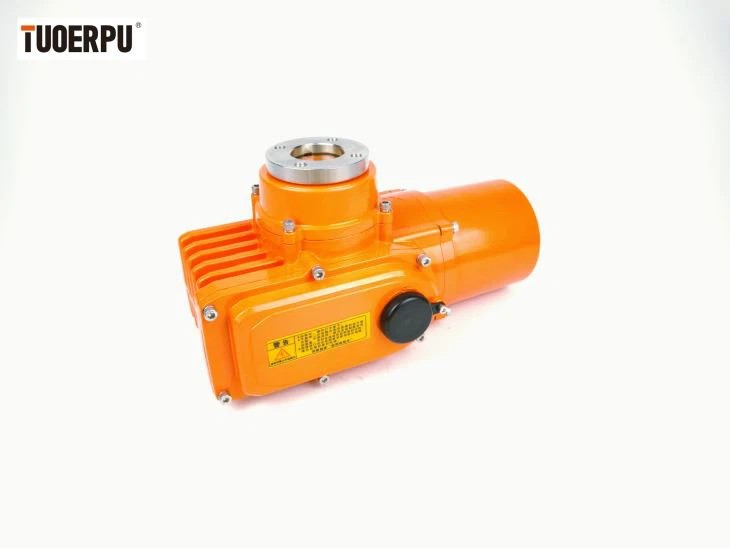

TOP series electric 90-degree rotary actuator, explosion-proof power failure reset integrated. The maximum output torque is 6000N. m. It is widely used in power plants, chemical plants, environmental protection equipment, etc. At the same time, it has small size, light weight, beautiful appearance and unique structure.
Product Parameters
Model/Parameter
Output Torque
Power Supply Voltage
Motor Power (W)
Current (A)
Running Time
Connection Dimension
Square Hole
Round Hole
TOP-105
50
DC24V
13
1.28
30s(5-10s speed up,35-60s slow down)
11×11
φ13
AC24V
10
1.5
14×14
AC110V
10
0.24
AC220V
10
0.16
TOP-110
100
DC24V
25
2.03
17×17
φ16.1
AC24V
25
2.12
AC110V
25
0.57
AC220V
25
0.35
TOP-116
160
DC24V
40
3
17×17
φ19.1
AC24V
40
0.63
AC110V
40
0.45
AC220V
40
0.35
TOP-120
200
DC24V
35
3.57
22×22
φ22.3
AC24V
40
3.65
AC110V
40
0.45
AC220V
40
0.37
TOP-140
400
DC24V
70
5.13
30s(10s speed up,35-60s slow down)
22×22
φ22.3
AC24V
90
6.8
AC110V
90
1.12
AC220V
90
0.57
TOP-160
600
DC24V
70
6.04
45s(15s speed up,60s slow down)
22×22
φ28.7
AC24V
90
6.8
AC110V
90
1.18
AC220V
90
0.6
TOP-1100
1000
DC24V
100
8.5
50s(30s speed up,60s slow down)
27×27
φ32
Model
Standard Running Time/Torque
Optional Running Time/Torque
Rotation Angle Range
Voltage Type
TOP-EX110
25S/100Nm
15s/50Nm
0-90°adjustable
DC 24V
TOP-EX116
25s/160Nm
15s/80Nm
TOP-EX120
25s/200Nm
15s/100Nm
TOP-EX140
25s/400Nm
15s/200Nm
TOP-EX160
25s/600Nm
15s/300Nm
TOP-EX1100
50s/1000Nm
25s/500Nm
TOP-EX1200
50s/2000Nm
25s/1000Nm
Insulation Resistance
100MΩ/500VDC
Withstand Voltage Class
1500VAC 1Minute
Protection Class
IP65(optional IP67/IP68）
Explosion-poof Grade
ExdI IBT4 GB
Installation Location
360° install at any angle
Electrical Interface
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector
Ambient Temperature
-20℃-60℃
Function Optional
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel
(N.m)
(optional)
(optional)
(optional)
(optional)
AC 24V
AC 110V
AC 220V
AC 380V
