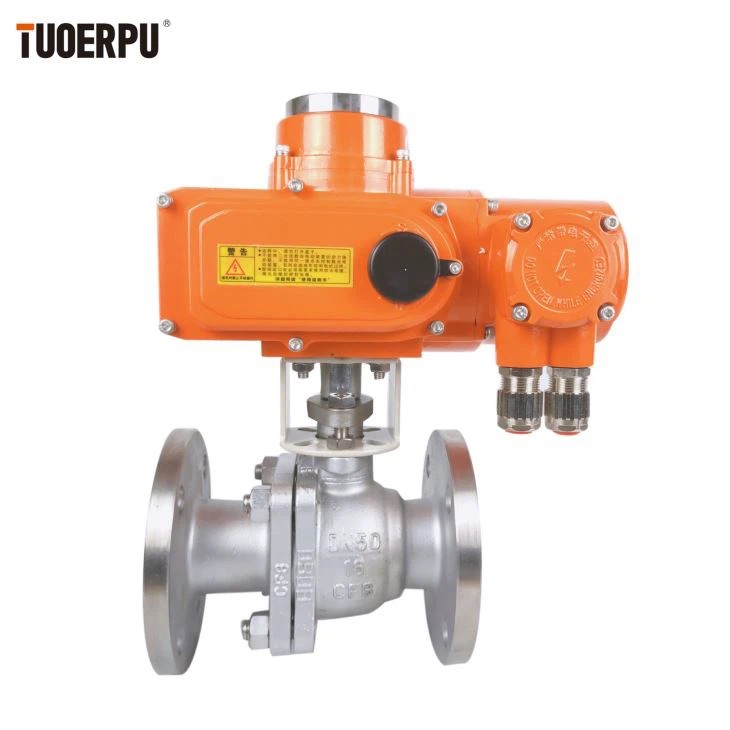

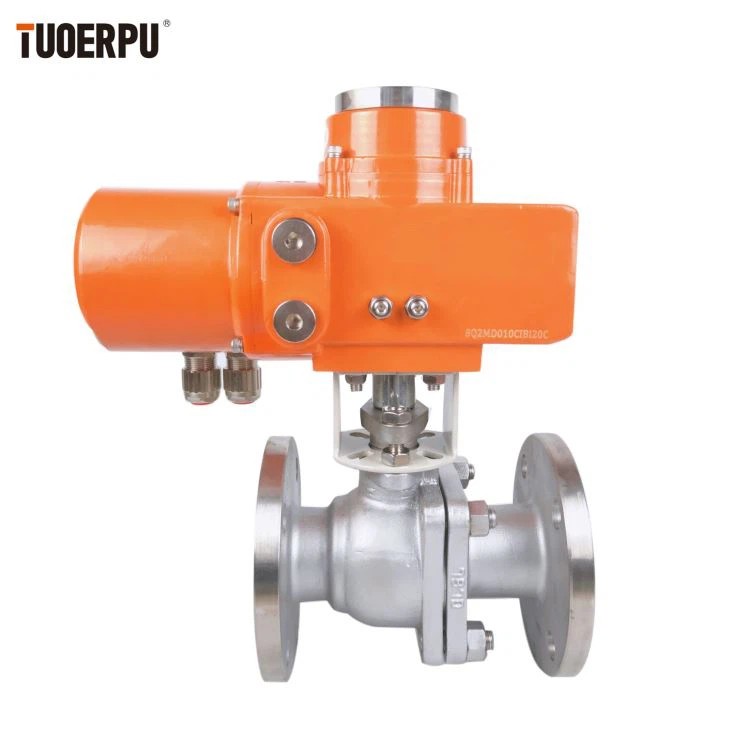

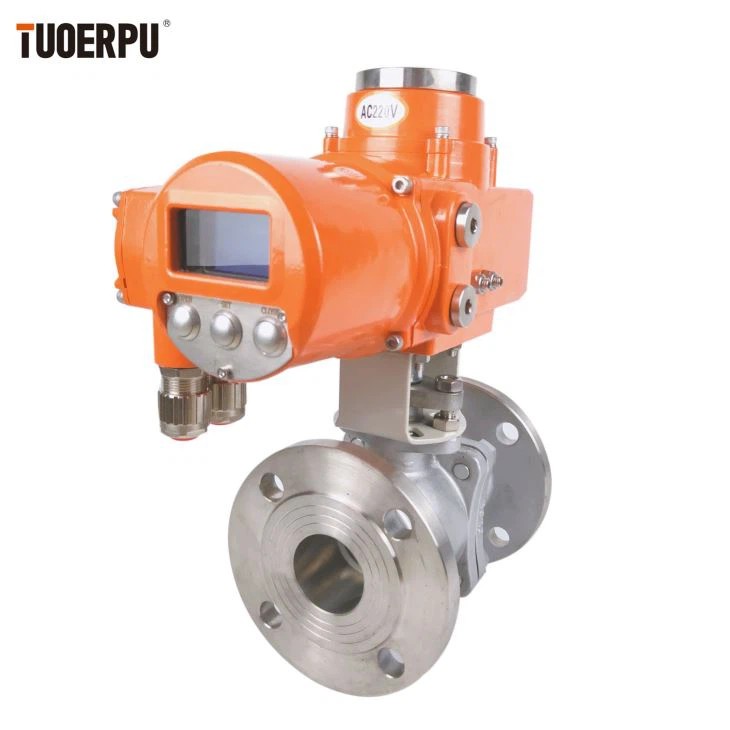

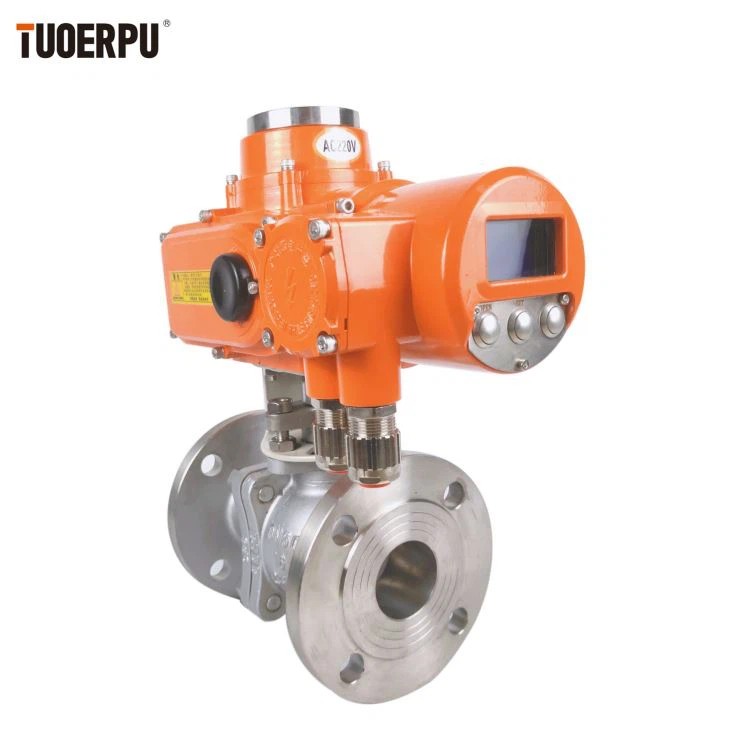

Intelligent electric actuator ball valve is a valve that the ball rotates around the center line of the valve body to open and close. Ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. When fully open or fully closed, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
Product Parameters
|
Model |
Standard Running Time/Torque |
Optional Running Time/Torque |
Rotation Angle Range |
Voltage Type |
|
TOP-EX110 |
25S/100Nm |
15s/50Nm |
0-90°adjustable |
DC 24V |
|
TOP-EX116 |
25s/160Nm |
15s/80Nm |
||
|
TOP-EX120 |
25s/200Nm |
15s/100Nm |
||
|
TOP-EX140 |
25s/400Nm |
15s/200Nm |
||
|
TOP-EX160 |
25s/600Nm |
15s/300Nm |
||
|
TOP-EX1100 |
50s/1000Nm |
25s/500Nm |
||
|
TOP-EX1200 |
50s/2000Nm |
25s/1000Nm |
||
|
Insulation Resistance |
100MΩ/500VDC |
|||
|
Withstand Voltage Class |
1500VAC 1Minute |
|||
|
Protection Class |
IP65(optional IP67/IP68） |
|||
|
Explosion-poof Grade |
ExdI IBT4 GB |
|||
|
Installation Location |
360° install at any angle |
|||
|
Electrical Interface |
1-20m × 1.5 explosion-proof plug, 1-explosion-proof cable connector |
|||
|
Ambient Temperature |
-20℃-60℃ |
|||
|
Function Optional |
Over torque protection, Dehumidification heater, Passive contact switch, Operating hand wheel |
|||
| Nominal Diameter DN(mm) | DN15~DN250 |
| Nominal Pressure | PN1.0/1.6/2.5/4.0/6.4MPa |
| Medium |
water,petroleum,nitric acid,acetic acid,viscous liquid,slurry,strong oxidizing |
| Temperature |
-40℃~+8℃(PTEE/PPL seal)-40℃~+350℃ (metal seal) |
| Leakage | ANSI B16104 standard |
| Sphere rotation angle | 90° |
| Body | WCB,304,316 |
| Seat | PTFE,PPL,Metal seal |

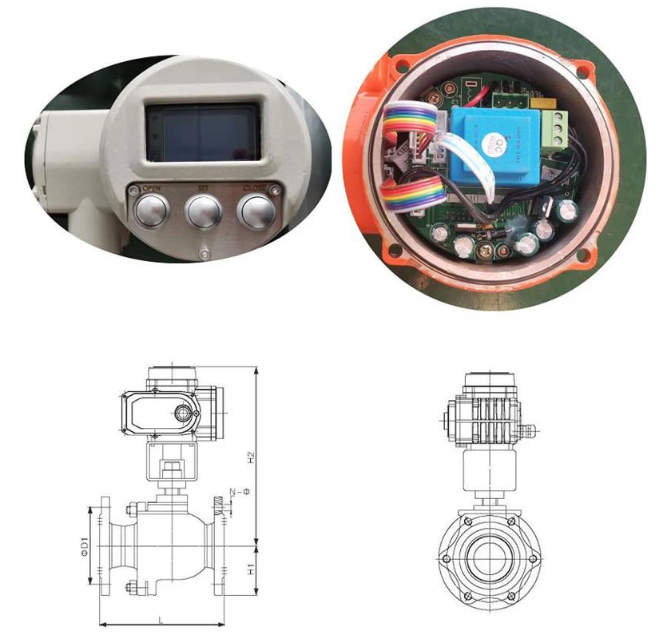

| Size | Model | ①D1 | H2 | H1 | L | N-Φ | |
| mm | in | 1.0MPa | 1.0MPa | ||||
| DN15 | 1/2" | TOP-105 | 65 | 177 | 48 | 130 | 4-14 |
| DN20 | 3/4" | TOP-105 | 75 | 183 | 53 | 140 | |
| DN25 | 1" | TOP-105 | 85 | 211 | 57 | 150 | |
| DN32 | 11/4" | TOP-105 | 100 | 231 | 67 | 165 | 4-18 |
| DN40 | 11/2" | TOP-110 | 110 | 276 | 77 | 180 | |
| DN50 | 2" | TOP-110 | 125 | 323 | 80 | 200 | |
| DN65 | 21/2" | TOP-116 | 145 | 365 | 90 | 220 | |
| DN80 | 3" | TOP-120 | 160 | 387 | 98 | 250 | 8-18 |
| DN100 | 4" | TOP-140 | 180 | 423 | 107 | 280 | |
| DN125 | 5” | TOP-160 | 210 | 448 | 122 | 320 | |
| DN150 | 6" | TOP-1100 | 240 | 504 | 140 | 360 | 8-23 |
| DN200 | 8" | TOP-1200 | 295 | 553 | 177 | 400 | 12-23 |
| DN250 | 10" | TOP-1200 | 355 | 569 | 212 | 450 | 12-25 |
